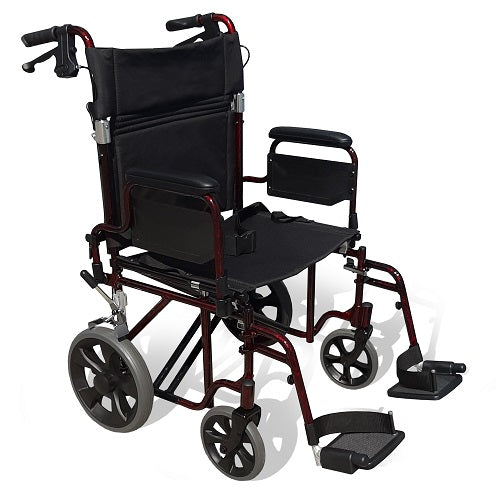

Redgum Transport Chair Deluxe

FEATURES

• Folding frame / fold down backrest

• Padded swing up / removable / reversible armrests

• “Desk Arms” allow you to move closer to table

• Removable swing away leg rests with adjustable height

• Adjustable height swing up footrests with heel strap

• Attendant and occupant hand brakes

• Attendant propelled push handles

• Heel straps

• Seat belt

• Storage pocket on backrest

SPECIFICATIONS

17" seat width

– Overall: 550mm (W) x 1040mm (D) x 980mm (H)
– Folded: 280mm (W) x 650mm (D) x 780mm (H)
– Seat: 410mm int. (W) x 390mm (D) x 500mm (H)
– Armrest Height: 250mm (from seat)
– Backrest Height: 460mm
– Footrest Height: 400 – 500mm (from seat)
– Wheels: Ø200mm / 8” (front) – Ø300mm / 12” (rear)
– Product Weight: 13.5kg
– Max. User Weight: 130kg

19" seat width

– Overall: 600mm (W) x 1040mm (D) x 1000mm (H)
– Folded: 300mm (W) x 650mm (D) x 800mm (H)
– Seat: 470mm int. (W) x 390mm (D) x 500mm (H)
– Armrest Height: 250mm (from seat)
– Backrest Height: 460mm
– Footrest Height: 400 – 500mm (from seat)
– Wheels: Ø200mm / 8” (front) – Ø300mm / 12” (rear)
– Product Weight: 13.8kg
– Max. User Weight: 130kg

22" seat width

-Overall: 700mm (W) x 920mm (D) x 1020mm (H)
-Folded: 440mm (W) x 720mm (D) x 820mm (H)
-Seat: 560mm int. (W) x 420mm (D) x 480mm (H)
-Armrest Height: 250mm (from seat)
-Backrest Height: 500mm
-Footrest Height: 380 – 480mm (from seat)
-Wheels: Ø200mm / 8” (front) – Ø300mm / 12” (rear)
-Product Weight: 13.5kg
-Max.User Weight: 180kg
